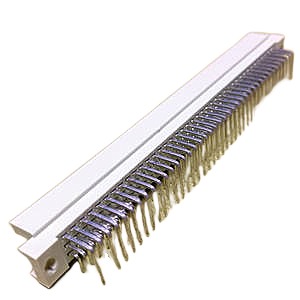

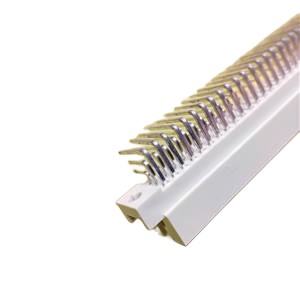

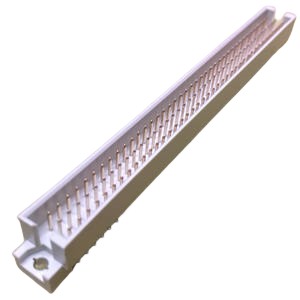

DIN41612 Connector,3row,120Pos,Female,Right angle
We offers a complete line of standard and custom DIN connectors,our product offerting includes 2,3,4,5 row products in both make & female. support OEM.
Basic information:
Temperature range
-55°C to +125°C
Insulator Material
PBT 30% Glass Filled UL 94 V-0 Rated
Socket Connectors
Pin Connectors
Phosphor Bronze Alloy
Pin Connectors
Copper Alloy
Current Range at ambient temp. of +20C
3.0Amp
Current Range at ambient temp. of +70C
2.0Amp
Current Range at ambient temp. of +100C
1.0Amp
Insertion force(N)
20 contacts @<=18 ;;; 30 contacts @ <=27
32 contacts @<=30 ;;; 48 contacts @ <=44
64 contacts @<=60 ;;; 96 contacts @ <=90
128 contacts @<=100 ;;; 160 contacts @ <=112
Additional information:
HS code:8536909000
Supply Ability:30k pieces/week
Place of Origin: China
Packing: Tray or Tube packaging
Ship item: FOB shenzhen & HK
Transportation: Sea/Air/Eepress DHL,UPS,FEDEX ...
Many products and drawings are available that are not listed in the catalog pages,if you don't see what your want.please contact us.
