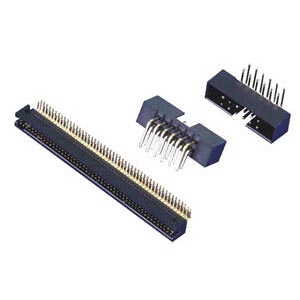

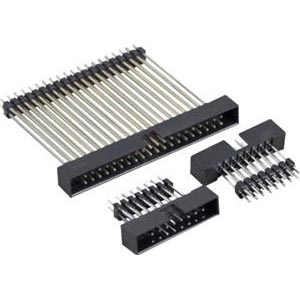

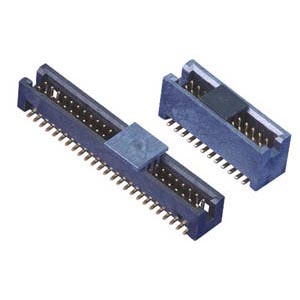

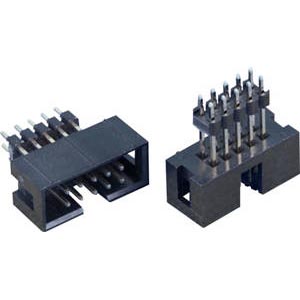

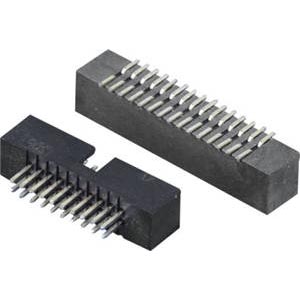

Box Header with 2.54mm Pitch, Straight Dip Type and 9.0mm Insulator Height Pin Header/PCB connector

Many headers and sockets are not list in the pages, if you don't see what you need, please contact us. E-mail: biz@zyszindustry.com ,thank you!

Factory price / Professional service / Support custom  / Fast delivery time

Specification:

Contact material: Brass

Contact plating : Au or Sn over Ni

Insulator material: Polyester(UL94V-0)

Standard: PA6T +30% G.F

Current rating: 0.75AMP

Withstanding voltage:500V AC/minute

Contact resistance: 30mΩ Max

Insulation resistance:1000mΩ MinOperation temperature:-40ºC to + 105ºC

We offers a complete line of headers and sockets in pitches from 0.200" to 1.00" in both through hole, STM and press fit technology.
