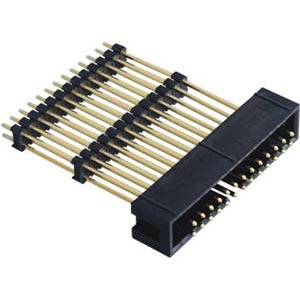

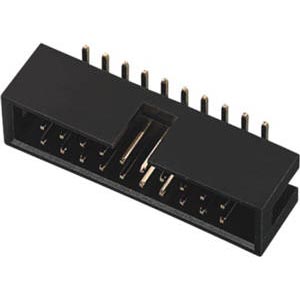

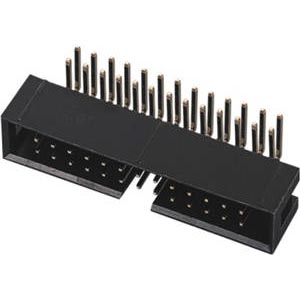

4/ 6/ 8/ 10/ 12/ 14/ 16/ 18/ 20 pin 2.54mm Right Angle Shrouded IDC Box Header Connector

4/ 6/ 8/ 10/ 12/ 14/ 16/ 18/ 20 pin 2.54mm Right Angle Shrouded IDC Box Header Connector

P/N: FHB-XXX
OEM: Yes
Sample: Yes
Small qty: Support
INQUIRY

Many headers and sockets are not list in the pages, if you don't see what you need, please contact us. E-mail: biz@zyszindustry.com ,thank you!

Factory price / Professional service / Support custom / Fast delivery time

Specification:

Contact material: Brass

Contact plating : Au or Sn over Ni

Insulator material: Polyester(UL94V-0)

Standard: PA6T +30% G.F

Current rating: 0.75AMP

Withstanding voltage:500V AC/minute

Contact resistance: 30mΩ Max

Insulation resistance:1000mΩ MinOperation temperature:-40ºC to + 105ºC

We offers a complete line of headers and sockets in pitches from 0.200" to 1.00" in both through hole, STM and press fit technology.
