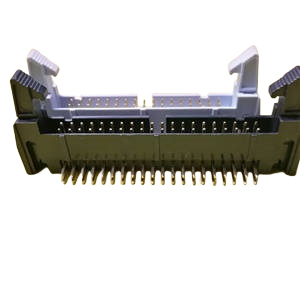

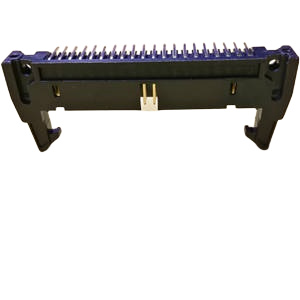

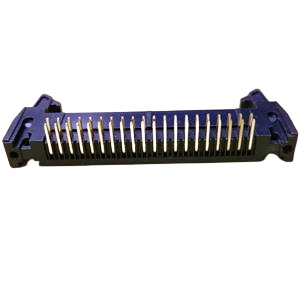

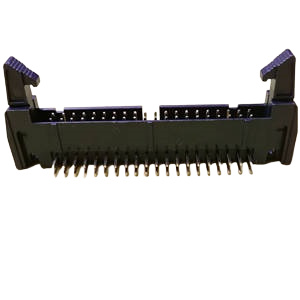

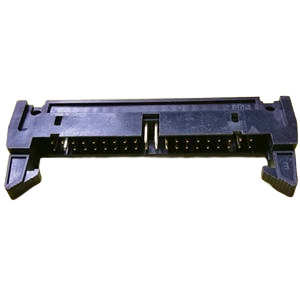

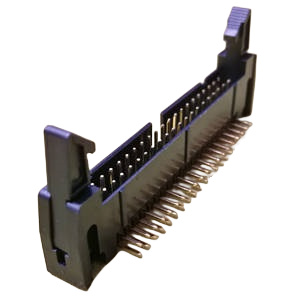

2.54mm Connector, Ejector Header 40contacts, Right Angle Black

2.54mm Connector, Ejector Header 40contacts, Right Angle Black

EJHD-XX
OEM
Factory price
INQUIRY

2.54mm Connector, Ejector Header 40contacts, Right Angle Black
Electrical:

Current Rating:	1 Amp
Insulation Resistance:	1000 mΩ Min
Withstanding Voltage:	500V AC/DC
Dielectric Withstanding:	500V AC
Contact Resistance:	20m Min
Operating Temperature	-40°~+105°C
Max Processing Temp:	230°C for 60 seconds
Max Processing Temp:	260°C for 10 seconds

Material

Insulator Material:	PA6T
Contact Material:	Copper Alloy
Plating:	Gold Plating

Important:

We offers a complete line of headers and sockets in pitches from 0.200" to 1mm in both through hole, STM and press fit technology.
