Terminal Block Connectors

  • 5 Position Pluggable 5.0/5.08mm Terminal Block Connector
  • 5 Position Pluggable 5.0/5.08mm Terminal Block Connector
  • 5 Position Pluggable 5.0/5.08mm Terminal Block Connector
  • 5 Position Pluggable 5.0/5.08mm Terminal Block Connector
5 Position Pluggable 5.0/5.08mm Terminal Block Connector5 Position Pluggable 5.0/5.08mm Terminal Block Connector5 Position Pluggable 5.0/5.08mm Terminal Block Connector5 Position Pluggable 5.0/5.08mm Terminal Block Connector

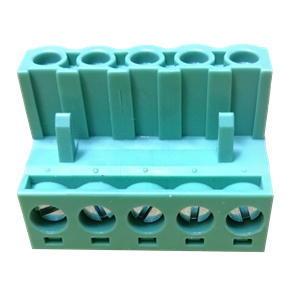

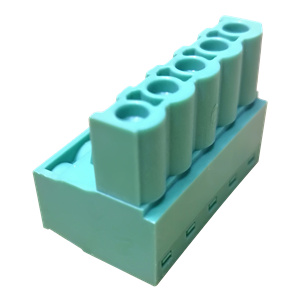

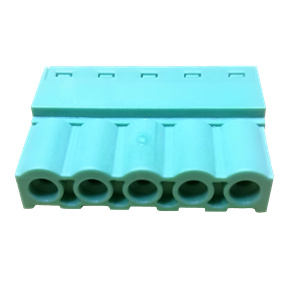

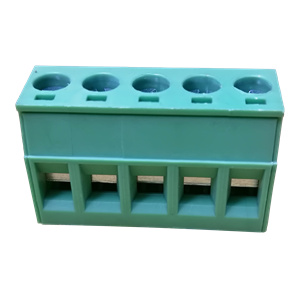

5 Position Pluggable 5.0/5.08mm Terminal Block Connector

  • P/N: TB-A11
  • Certification: UL
  • Package:Tray / Bag
  • HSCODE:8451900000
  • INQUIRY

Position Pluggable 5.0/5.08mm Terminal Block Connector

Basic info:

  • Contact resistance: ≤20Ω/contact
  • Insulator resistance: ≥1,000mΩ
  • With standing voltage: 1,000V AC/minute
  • Contact: brass
  • Contact plated: gold flash over 50μ Ni
  • Insulator materials: PA66 + 30% GF
  • Gold plated: -55 to 105°C
  • Tin plated: -40 to 105°C

Many models are not list in the pages, if you don't see what you need, please contact us. E-mail: biz@zyszindustry.com ,thank you!
