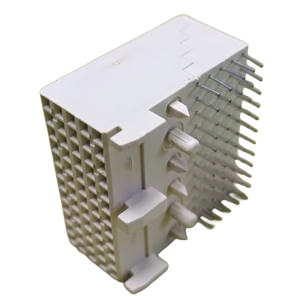

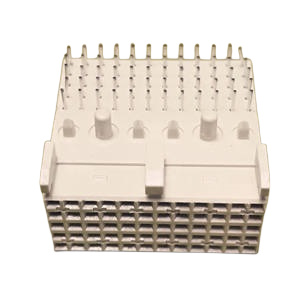

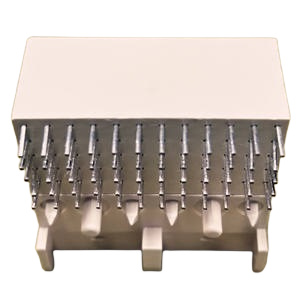

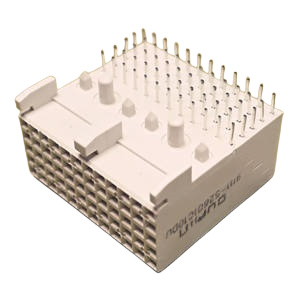

2.0mm Hard metric connector / Futurebus,5x12Female,right angle,Press Fit

2.0mm Hard metric connector / Futurebus,5x12Female,right angle,Press Fit

P/N: FB-XXXX
OEM: Yes
Sample: Yes
Small qty: Support
INQUIRY

Furturebus connector/Edge card,connectors.
- 2mm high density futurebus + male solder and press fit type
- Available pin count from 30~240
- Side by side stackable
- Various solder tail length options
- Push-fit peg.
RoHS Directive-compliant
Position: 60
Current rating: 1A
Contact resistance: 30mΩ maximum
Insulation resistance: 1000MΩ minimum
Withstanding voltage: 1000VAC
Operating temperature: -55ºC to +125ºC
Other hard metric connectors are available

We offers a complete line of 5+2 and 8+2 Hard Metric Connectors as well as a complete line of 4 and 5 row Futurebus Connectors.

More products are not list this page,If you don't see what you need, please contact us by biz@zyszindustry.com
