Female Socket Connectors

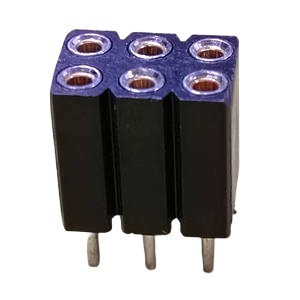

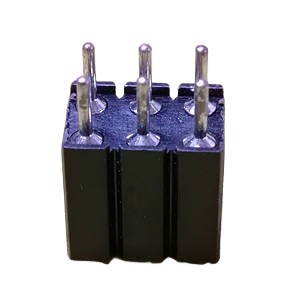

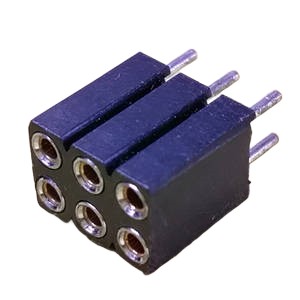

Female header connector,2.54 SIP SOCKET 2X3Pos 180 Machine Pin PPS H=7.0 L=10.0

Female header connector,2.54 SIP SOCKET 2X3Pos 180 Machine Pin PPS H=7.0 L=10.0

P/N: FH-D4
OEM: Yes
Sample: Yes
Small qty: Support
INQUIRY

We offers a complete line of headers and sockets in pitches from 0.200" to 1.00" in both through hole, STM and press fit technology. Many female headers are not list in the pages, if you don't see what you need, please contact us. E-mail: biz@zyszindustry.com ,thank you!

Specification:

Contact material: Brass

Contact plating : Au or Sn over Ni

Insulator material: Polyester(UL94V-0)

Standard: PA6T +30% G.F

Current rating: 0.75AMP

Withstanding voltage:500V AC/minute

Contact resistance: 30mΩ Max

Insulation resistance:1000mΩ MinOperation temperature:-40ºC to + 105ºC
